Yaman DHI Implanter: A Patented Innovation in DHI Hair Transplantation

Dr. Resul Yaman has been using the DHI hair transplantation methodology since 2015. He is one of the surgeons in Turkey who uses the DHI technique. Before 2015, he performed hair transplantation using the FUE technique with forceps for graft placement. However, placing grafts with forceps can cause bending, compression, and accidental burial of hair follicles beneath the skin. Throughout his surgical practice, Dr. Yaman observed these challenges and recognized the need for a safer, more controlled mechanism for graft placement.

Using the DHI implanter, Dr. Yaman had some difficulties in performing DHI hair transplantation in people with soft or thick scalp. When the DHI implanter works at the relative angle, it can have limited impact on the surrounding grafts. However, when the DHI implanter works at the low angle, it impacts the tissues more strongly. As a result, this increased pressure can cause dislocation of previously implanted grafts. This creates a challenge when placing grafts close together, as the surgeon may need to use the implanter at steeper angles to avoid disturbing previously placed grafts.

Nevertheless, in certain areas of the scalp, such as the temples and first 2-3 cm of the frontal region, a low angle is important for successful transplantation. If grafts are not placed at appropriate low angles, the transplanted hair may grow too upright and produce an unnatural appearance. Thus, it is necessary to achieve the right angle in the frontal hairline and the temple area in order to receive a natural looking result and allow the patient to style their hair freely.

How Did the Yaman DHI Implanter Develop?

To address these challenges, Dr. Yaman considered making incisions in the frontal and temple regions before grafting with the DHI implanter. However, in the standard DHI implanter there is a sharp tip that makes the incision during insertion. Using it for grafting in previously prepared incisions was not the right decision.

Thus, the surgeon had to think of an intermediate design of the implanter that would place the grafts in the previously made incisions without making any additional cuts. At first, the doctor tried to use the KEEP implanter. However, the absence of the slider mechanism caused many difficulties in this technique both for the surgeon and for the surgical team.

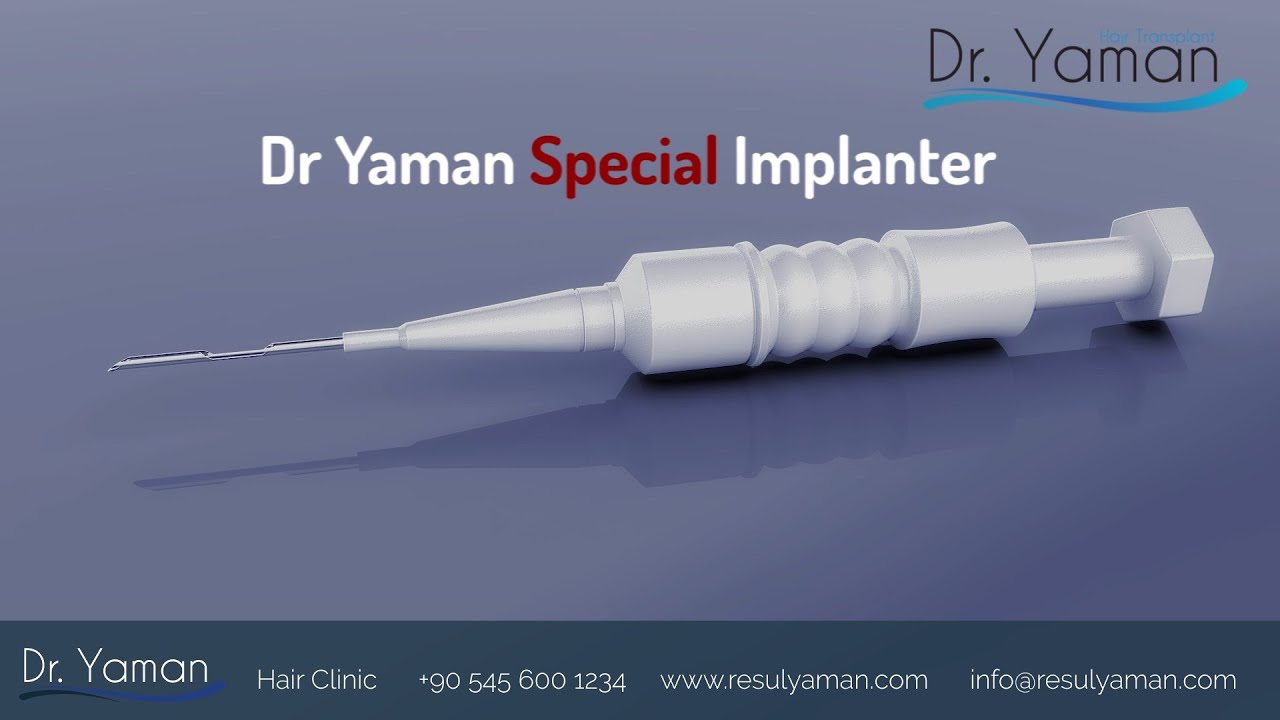

Then, Dr. Yaman changed the mechanism of the standard DHI implanter and developed the Yaman DHI Implanter. This implanter has a blunt tip. Also, the implanter is produced in various diameters, from 0.7 mm to 1.1 mm. The main feature of this implanter is in the ability to place grafts in previously made micro-incisions with the help of sapphire blades. The surgeon uses the sapphire blades for creating incisions depending on the length of the graft, required depth, and the recipient area. During this process, the hair graft is loaded into a tube within the implanter and then inserted into the prepared incision.

What Makes the Yaman DHI Implanter Different?

There are two main differences between the Yaman DHI Implanter and the standard DHI implanter.

The blunt tip requiring the preparation of incisions in advance.

Unlike the standard DHI Choi implanter, the Yaman DHI Implanter has the blunt tip. In this case, it is required to prepare the incisions in the recipient areas in advance before the insertion of the grafts.

A different graft-loading mechanism

In the classic DHI technique, the grafts are loaded into the implanter through its tip. Two or three team members work as graft loaders during the procedure to prepare the instruments for placement.

In contrast, the Yaman DHI hair transplanter has the groove along the body of the device. This allows a single team member to load the grafts easily into the implanter. The graft is then advanced into the scalp with the help of slider mechanism.

This helps to simplify the process of graft loading and can increase the efficiency of the procedure. Besides, with this design two team members can conduct graft implantation simultaneously in the same patient when it is necessary for the surgical plan and the workflow.

How Does Dr. Resul Yaman Use the Yaman DHI Implanter?

Although Dr. Yaman uses the DHI methodology, he adopts a hybrid approach choosing the method of grafting in dependence on the characteristics of each scalp region. Based on his years of clinical experience, the surgeon does not apply the same hairline design, placement pattern, or technique to every patient. Hair characteristics, scalp structure, skin thickness, and other individual factors vary between patients and can influence the surgical approach.

In the frontal area, the Yaman considers scalp thickness and direction of hair growth when choosing the placement method. The surgeon uses the Yaman DHI Implanter in the temples and first 2-3 cm of the frontal area, where the low-angle placement is especially important.

The preparation of incisions with the sapphire blades before the insertion of the grafts gives the possibility to control the direction and angle of the recipient sites. The blunt-tipped Yaman DHI pen then places the grafts into these sites. In this way, the surgeon can obtain natural hairline transitions and hair direction.

The mid-scalp and crown have a different anatomy and hair growth patterns from the frontal hairline. The placement angles may not be as low as the angles of the frontal and temple regions. For these areas, the doctor uses the standard DHI implanter in case of the direct insertion method. In this case, the implanter makes the recipient site and implants the graft in one step, without the necessity to make incisions previously.

The doctor evaluates the frontal area, midscalp, and crown separately and chooses the method of grafting for each region depending on the characteristics of this area.

The Role of the Yaman DHI Implanter in Creating a Natural Hairline

One of the reasons why Dr. Yaman achieves the natural-looking hairline in hair restoration is in the use of the Yaman DHI Implanter for grafting in the frontal and temple areas.

The use of forceps in the transplantation process may increase the risk of damage of the grafts that were repeatedly handled or compressed in the process of insertion. It can also be difficult to insert the grafts into very small recipient sites, such as micro-incisions measuring approximately 0.7-0.8 mm, with the help of forceps.

In this way, the Yaman DHI pen gives the opportunity to insert the graft into the prepared incision with the help of the slider mechanism of the device. In this way, the insertion in the small recipient sites becomes easier and reduce some of the handling difficulties associated with forceps.

Also, the sapphire blades are very sharp and can make the precise incisions. Before using the Yaman DHI hair transplanter, Dr. Yaman prepares the recipient sites with the sapphire blades and establishes the required direction, angle, and depth of the incisions.

Comparing with the incision created directly by the sharp tip of the standard DHI implanter, in this case, the surgeon has the possibility to make recipient sites separately and adjust them according to the required hair growth pattern.

In the crown area, where the requirements to the placement angles are different from the ones for the frontal hairline, using the standard DHI implanter may be more convenient in this regard.

Finally, the surgeon uses the Yaman DHI Implanter as part of his DHI hair transplantation method. With the help of adaptation of the graft placement to the characteristics of each scalp area, he achieves the natural-looking result and has the control over graft directions and placement.

FUE vs. Yaman DHI Implanter vs. Standard DHI Implanter

Feature	Classic FUE with Forceps	Yaman DHI Implanter	Standard DHI Implanter
Graft placement instrument	Forceps	Yaman DHI Implanter	Standard DHI implanter
Recipient-site preparation	Separate incisions are prepared before placement	Micro-incisions are prepared before placement	The sharp implanter tip creates the recipient site during insertion
Incision requirement	Requires pre-made recipient-site incisions	Requires pre-made micro-incisions	Does not require separately prepared incisions when used in the conventional direct-insertion method
Typical incision diameter	Approximately 1.0–1.5 mm	Approximately 0.7–1.0 mm	Approximately 0.7–1.0 mm
Tip design	Not applicable	Blunt	Sharp

PCT Process And International Patent Coverage For Yaman Implanter

In this regard, it should be mentioned that the implanter invented by Dr. Resul Yaman has the domestic patent protection and is also associated with the international patent protection through the PCT system. With the help of this system, inventors can protect their invention in several countries with a single application.

The patent documentation states that there are several characteristics that distinguish this device from others:

The slider mechanism that advances the graft without the need in additional tools.
The observation slit that gives the possibility to observe graft placement visually.
The blunt tip that helps to reduce the bending and damaging of grafts in the process of insertion.

Thus, these characteristics distinguish the Yaman Implanter as the medical device developed for solving specific problems in hair transplantation. The inclusion of the patent documentation in this article allows the reader to see the technical characteristics of this device from the official sources.

FAQs: Yaman DHI Implanter

What is the difference between the Yaman Implanter and traditional forceps methods?

The traditional forceps can crush and destroy follicles. The Yaman hair transplanter just inserts the follicles into the scalp providing minimal trauma and therefore high graft survival rate.

Why does Dr. Resul Yaman use sapphire blades with the Yaman Implanter?

The sapphire blades allow Dr. Yaman to prepare precise micro-incisions before graft insertion. In this way, the angle, direction, and depth of grafts in the frontal hairline and temples become controllable.

Does the Yaman Implanter shorten the hair transplant procedure?

Yes, this DHI Implanter does shorten the hair restoration procedure because it lacks the need for an additional implantation tool, making the procedure faster and reduces the surgeon’s workload.

Does this mechanism developed by Dr Resul Yaman allow obtaining a more natural result in hair transplantation in Turkey?

Yes, this mechanism allows obtaining the natural result of transplantation due to precise specifying of angle, direction, and depth of the grafts. The patient will have the new natural hair that will fit with the existing hair perfectly.

Who is the best candidate for the Yaman Implanter with the DHI procedure?

Anyone without health problems that prevent hair replacement surgery and who has a sufficient donor area is suitable for this procedure. Dr. Resul Yaman has case studies related to each Norwood hair loss stage.

Can the Yaman DHI hair transplanter be used for all scalp areas?

Dr. Resul Yaman uses the DHI placement method depending on each scalp area. He uses the Yaman DHI pen in the frontal hairline and temples, but a standard DHI implanter may be better in the midscalp and crown.

Is the Yaman DHI Implanter protected by an international patent?

The Yaman Implanter has patent-related protection and an associated Patent Cooperation Treaty (PCT) application. However, a PCT application does not itself grant a worldwide patent. The current application status and protection in individual countries should be verified through official patent records.
